At Acreage Fences, every ornamental aluminum fence project is custom-manufactured to your specifications!  Courtyard brand aluminum fence is premium-grade with a lifetime warranty, manufactured by Diggers Specialties INC, located in Breman, Indiana.  With dozens of configurations also comes 12 different color / texture combinations to choose from, ensuring that your finished project is just right for your property!

*Click on image to scroll through the gallery

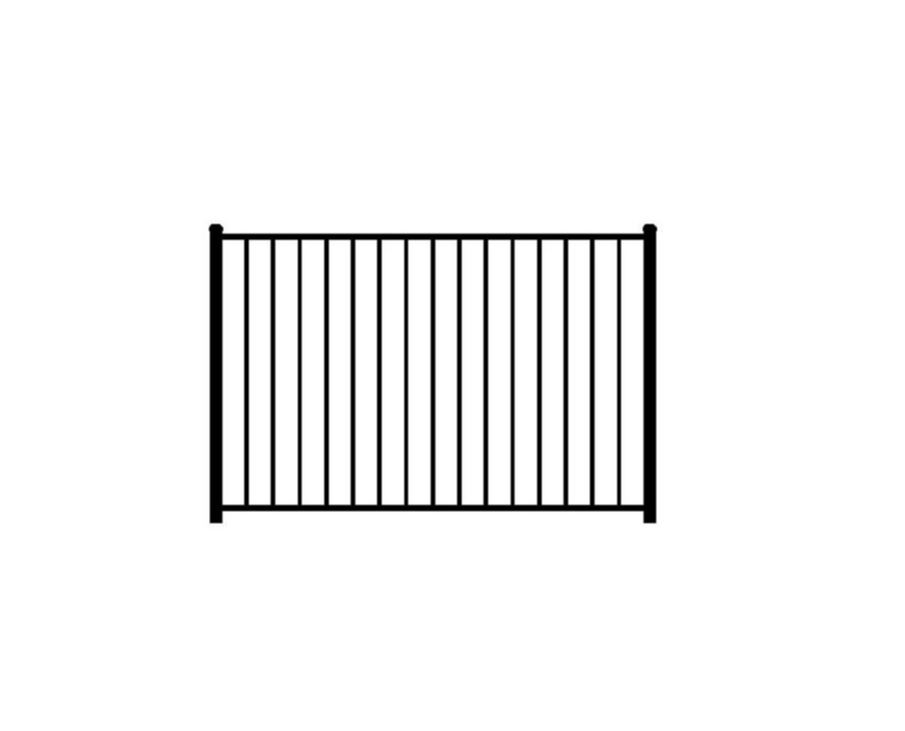

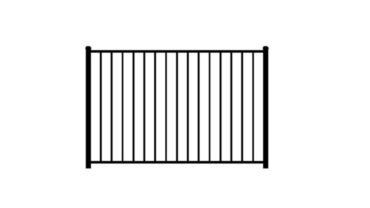

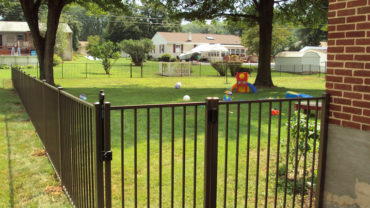

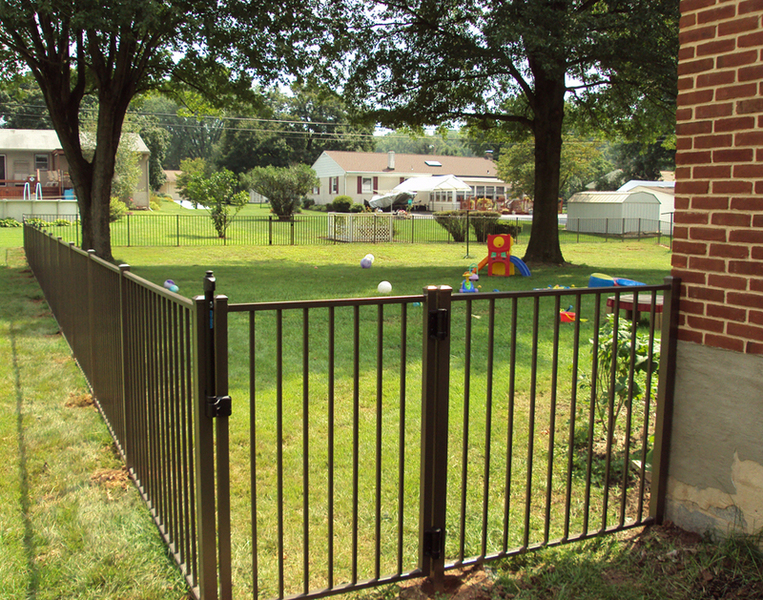

Model 0220
2 Rail – Flat Top

  • Standard Height: 48″
  • Posts: 2″ x 2″ with 6′ Centers
  • Gate Posts: 2″ x 2″ x .090″ Wall with Inserts
  • Post Caps: 2″ Flat Cap-Standard
    2″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .625″ x .625″ x .045″ Wall
  • Picket Spacing: 3.792″
  • Lifetime Warranty

*Click on image to scroll through the gallery

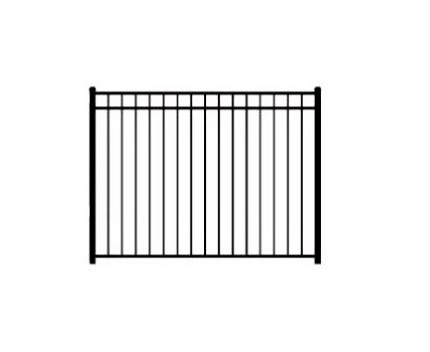

Model 0230
3 Rail – Flat Top

  • Fence Heights: 36″, 42″, 48″,  55″, 60″
  • Posts: 2″ x 2″ with 6′ Centers
  • Gate Posts: 2″ x 2″ x .090″ Wall with Inserts
  • Post Caps: 2″ Flat Cap-Standard
    2″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .625″ x .625″ x .045″ Wall
  • Picket Spacing: 3.792″
  • Lifetime Warranty

*Click on image to scroll through the gallery

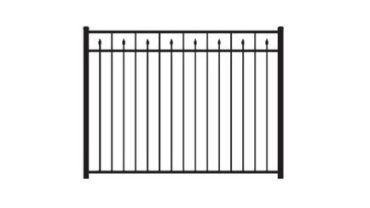

Model 0233
3 Rail Flat Top
with Alternating Spears

  • Fence Heights: 36″, 42″, 48″,  55″, 60″
  • Posts: 2″ x 2″ with 6′ Centers
  • Gate Posts: 2″ x 2″ x .090″ Wall with Inserts
  • Post Caps: 2″ Flat Cap-Standard
    2″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .625″ x .625″ x .045″ Wall
  • Picket Spacing: 3.792″
  • Finial Option: Triad, Quad
  • Lifetime Warranty

*Click on image to scroll through the gallery

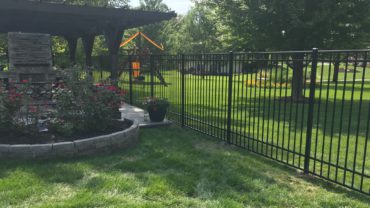

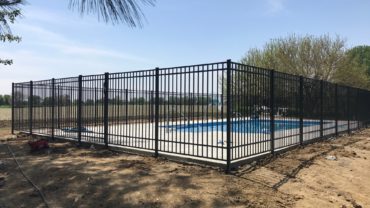

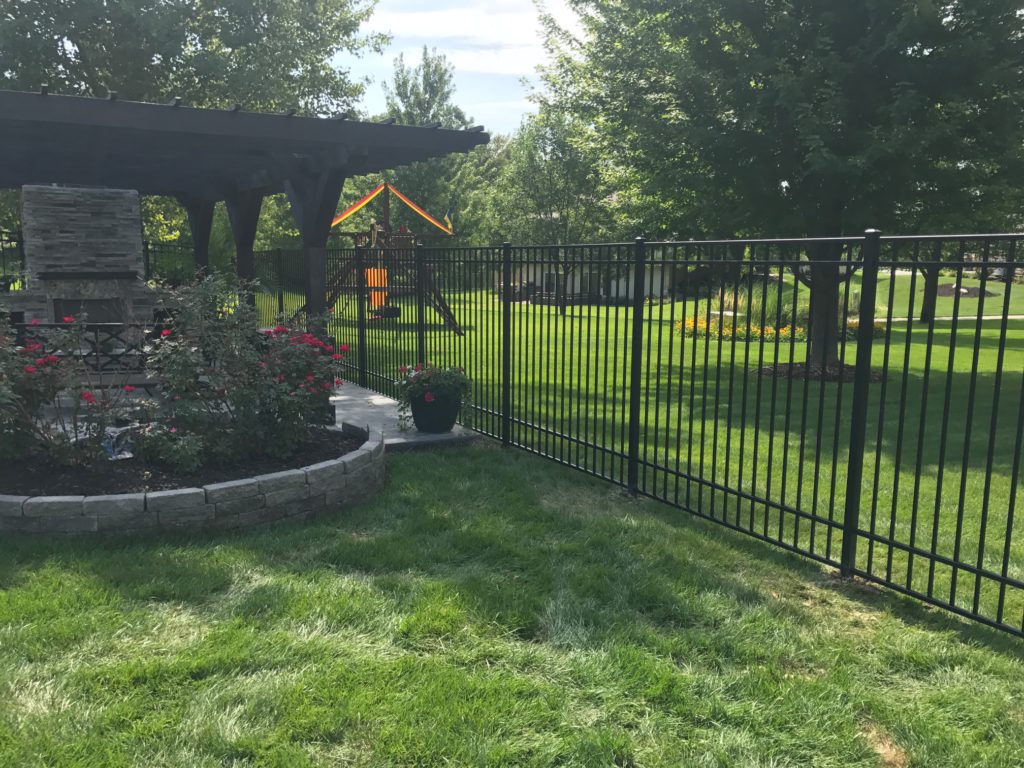

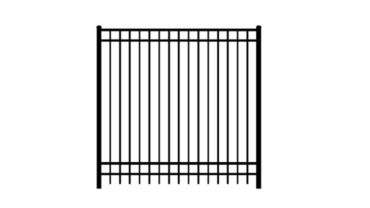

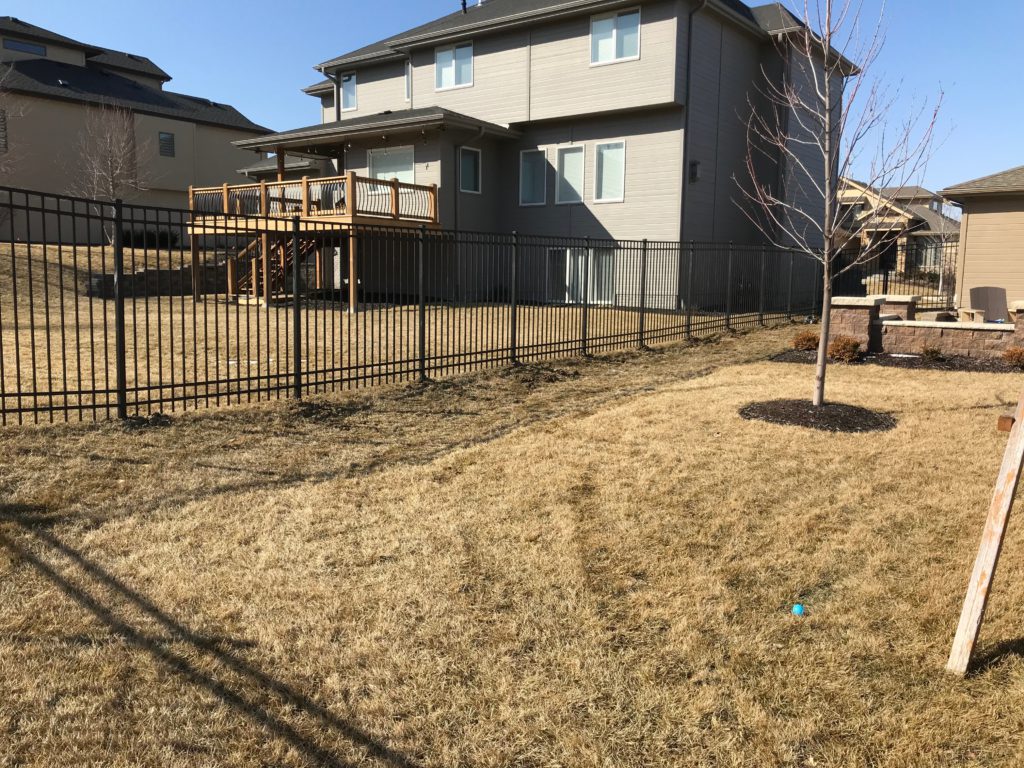

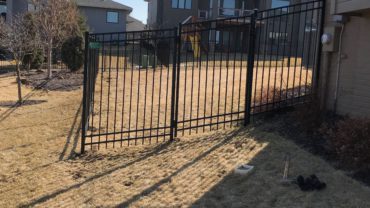

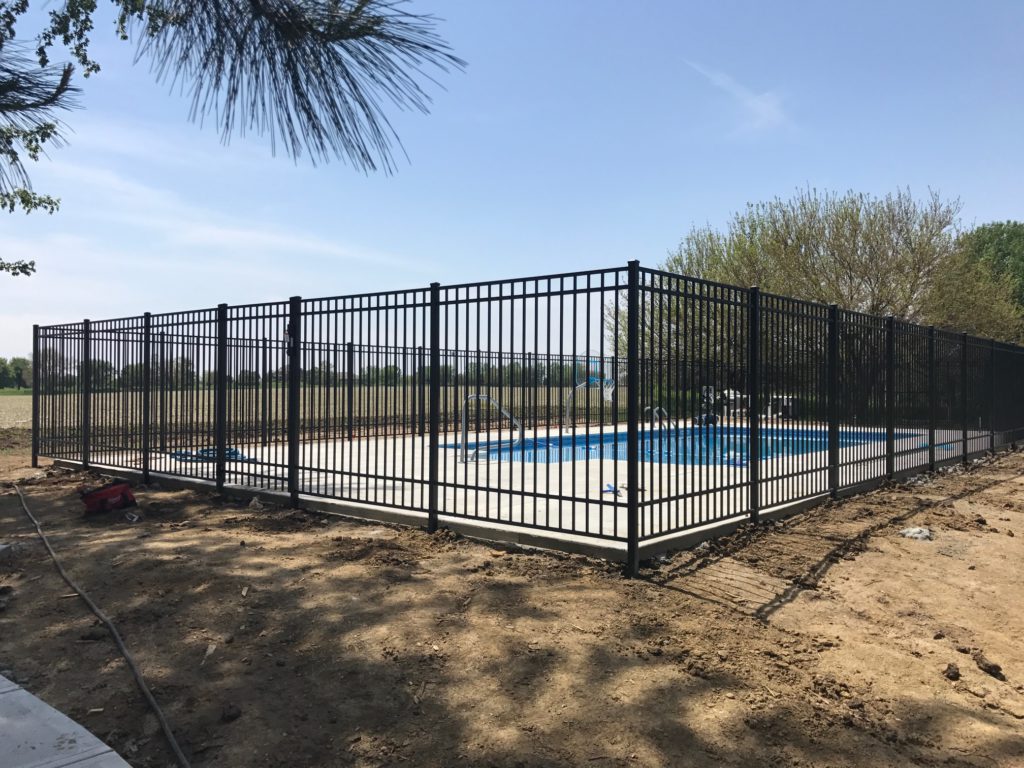

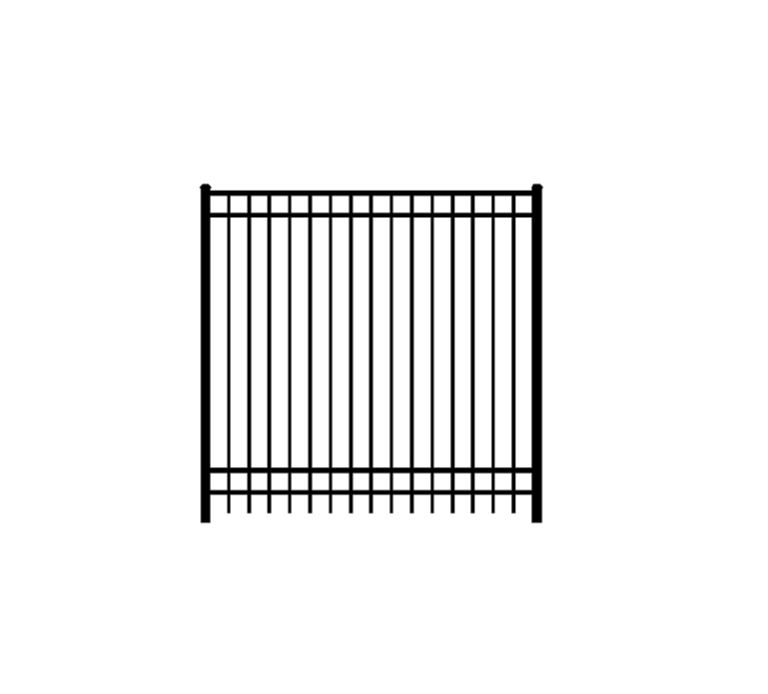

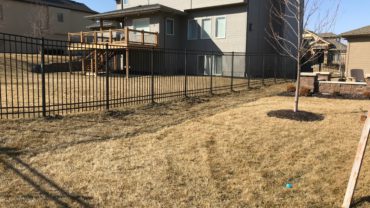

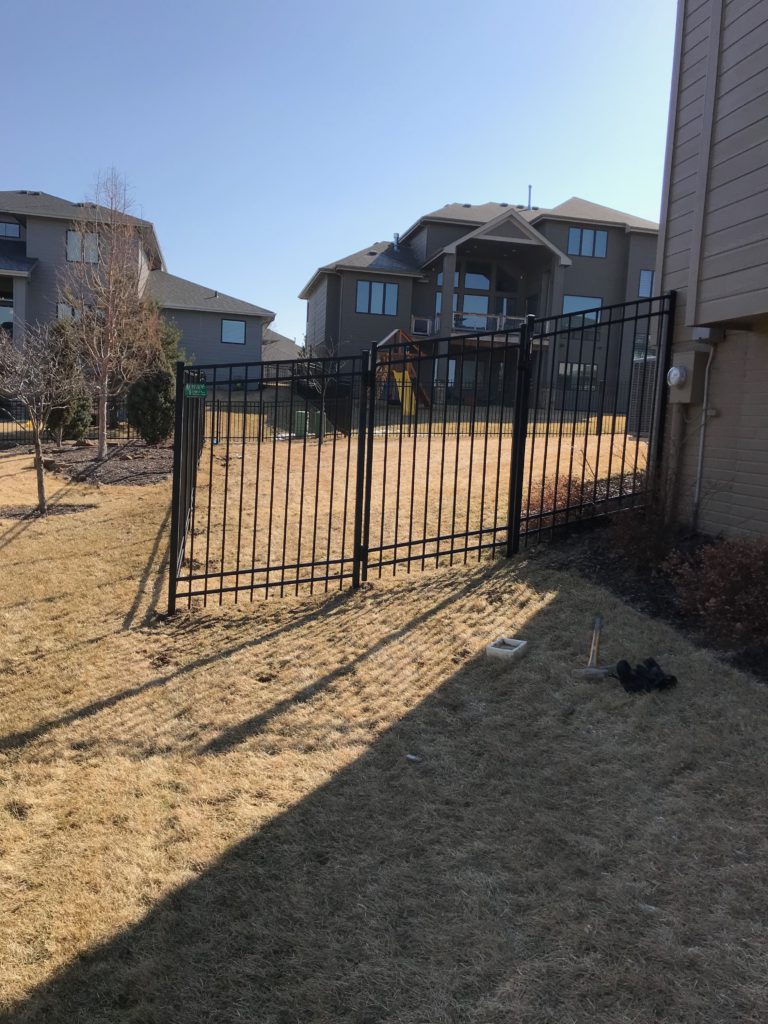

Model 0240
4 Rail – Flat Top

  • Fence Height: 72″
  • Posts: 2″ x 2″ x .090″ Wall with 6′ Centers
  • Gate Posts: 2″ x 2″ x .090″ Wall with Inserts
  • Post Caps: 2″ Flat Cap-Standard
    2″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .625″ x .625″ x .045″ Wall
  • Picket Spacing: 3.792″
  • Lifetime Warranty

*Click on image to scroll through the gallery

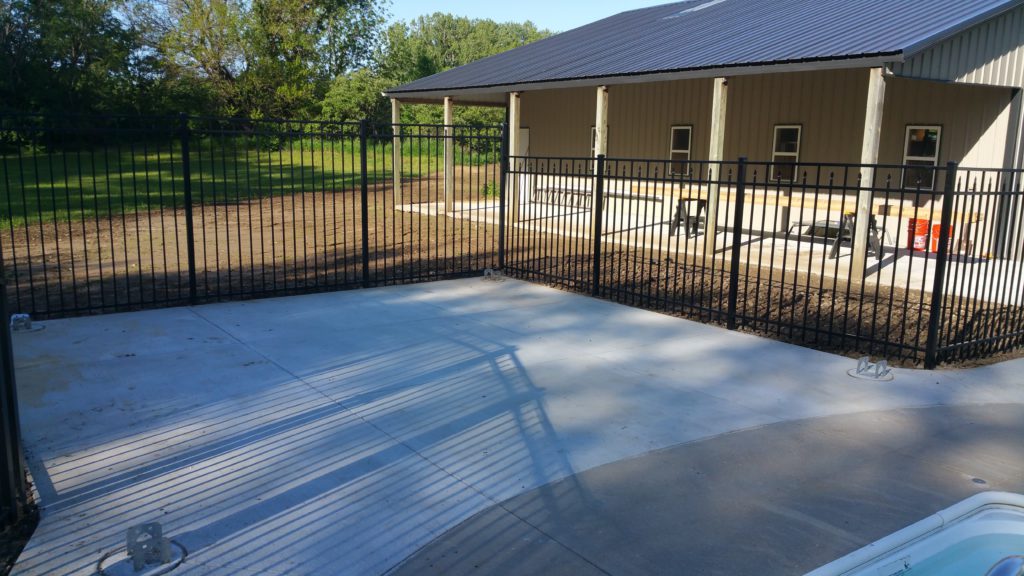

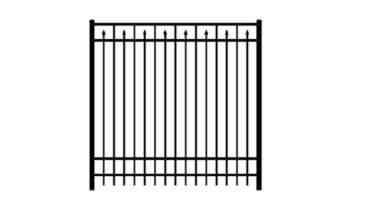

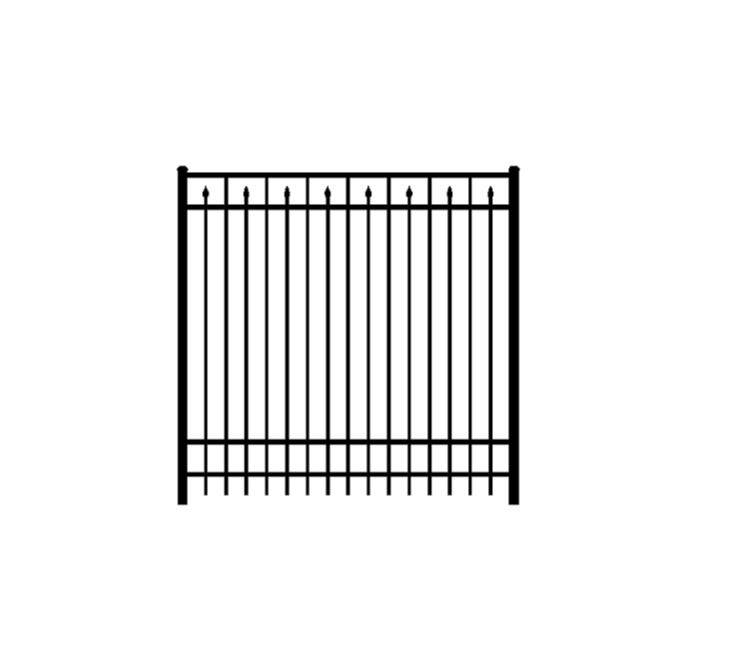

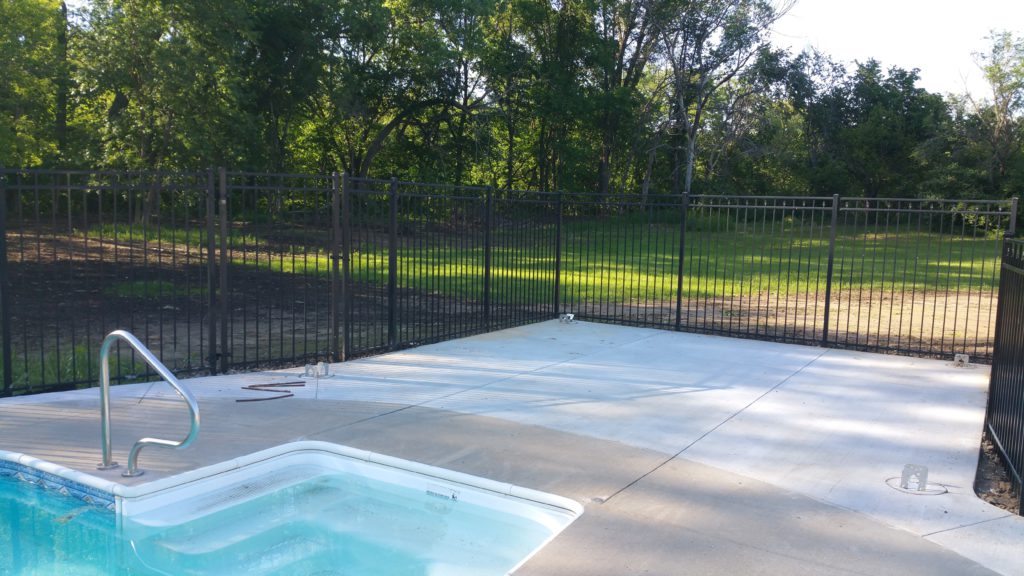

Model 0243
4 Rail – Flat Top
with Alternating Spears

  • Fence Height: 72″
  • Posts: 2″ x 2″ x .090″ with 6′ Centers
  • Gate Posts: 2″ x 2″ with .090 Wall
  • Post Caps: 2″ Flat Cap-Standard
    2″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .625″ x .625″ x .045″ Wall
  • Picket Spacing: 3.792″
  • Finial Option: Triad, Quad
  • Meets National Pool Code Requirements for Height and Spacing.  Check Local Pool Code Requirements.
  • Lifetime Warranty

*Click on image to scroll through the gallery

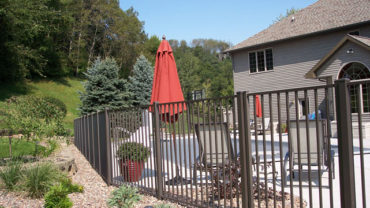

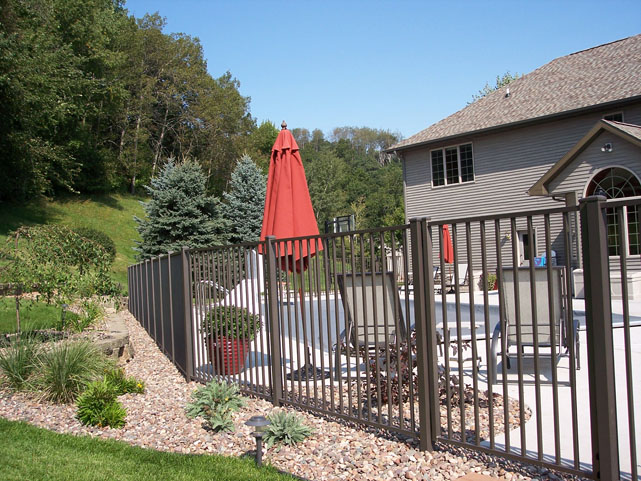

Model 1220
2 Rail – Flat Top

  • Fence Heights: 48″, 54″
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 6′ Centers
  • Gate Posts: 2″ x 2″ with .090 Wall with inserts
  • Post Caps: 2.5″ Flat Cap-Standard
    2.5″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .75″ x.75″
  • Picket Spacing: 3.65″
  • Lifetime Warranty

*Click on image to scroll through the gallery

Model 1230
3 Rail – Flat Top

  • Fence Heights: 36″, 42″, 48″,  55″, 60″, 72″
  • Posts: 2.5″ x 2.5″ with 6′ Centers
  • Gate Posts: 2.5″ x 2.5″ with .090 Wall
  • Post Caps: 2.5″ Flat Cap-Standard
    2.5″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .75″ x .75″
  • Picket Spacing: 3.65″
  • Lifetime Warranty

*Click on image to scroll through the gallery

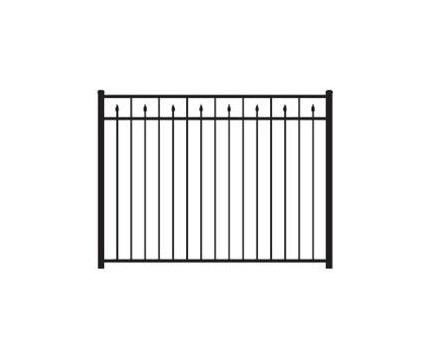

Model 1233
3 Rail – Flat Top
with Alternating Spears

  • Fence Heights: 36″, 42″, 48″, 55″, 60″, 72″
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 6′ Centers
  • Gate Posts: 2.5″ x 2.5″ with .090 Wall with inserts
  • Post Caps: 2.5″ Flat Cap-Standard
    2.5″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .75″ x.75″
  • Picket Spacing: 3.65″
  • Finial Option: Triad, Quad
  • Lifetime Warranty

*Click on image to scroll through the gallery

Model 1230R (Rings)
3 Rail – Flat Top

  • Fence Heights: 36″, 42″, 48″, 55″, 60″, 72″
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 6′ Centers
  • Gate Posts: 2.5″ x 2.5″ with .090 Wall with inserts
  • Post Caps: 2.5″ Flat Cap-Standard
    2.5″ Ball Cap-Optional
  • Rails: 1″ Height x .085″ Wall by 1.125″ Width x .065″ Wall
  • Pickets: .75″ x.75″
  • Picket Spacing: 3.65″
  • Rings: 3.620″ Diameter x .375″ Width x .625″ Wall
  • Lifetime Warranty
