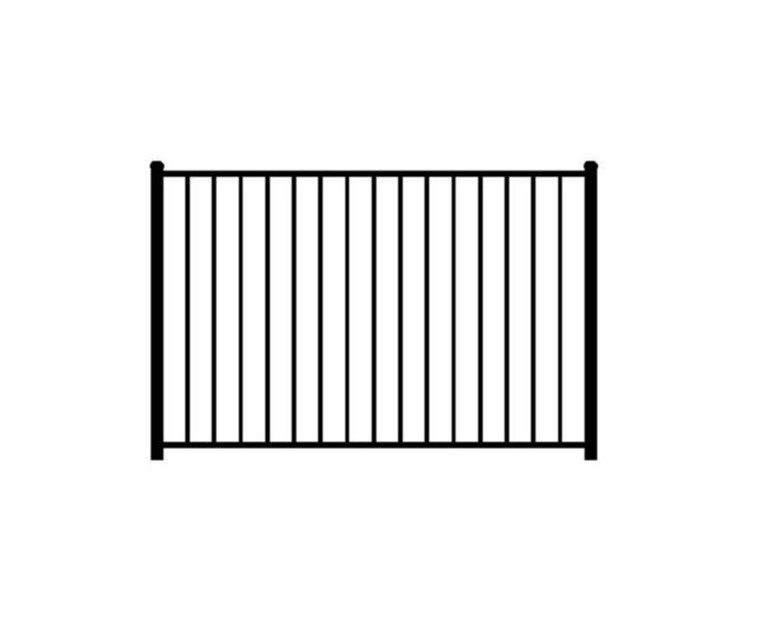

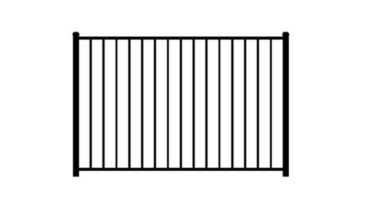

Model 2220
2 Rail – Flat Top

  • Height: 54″
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Lifetime Warranty

*Click on image to scroll through the gallery

Model 2230
3 Rail – Flat Top

  • Heights: 48″, 54″, 60″, 72″
  • Standard or EXTRA PICKETS ON BOTTOM
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Lifetime Warranty

*Click on image to scroll through the gallery

Model 2233
3 Rail Flat Top
with Alternating Spears

  • Heights: 48″, 54″, 60″, 72″
  • Standard or EXTRA PICKETS ON BOTTOM
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Finial Option: Triad, Quad
  • Lifetime Warranty

*Click on image to scroll through the gallery

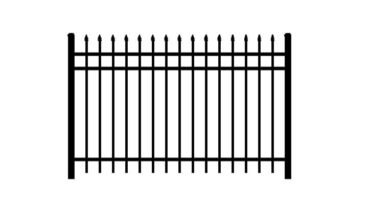

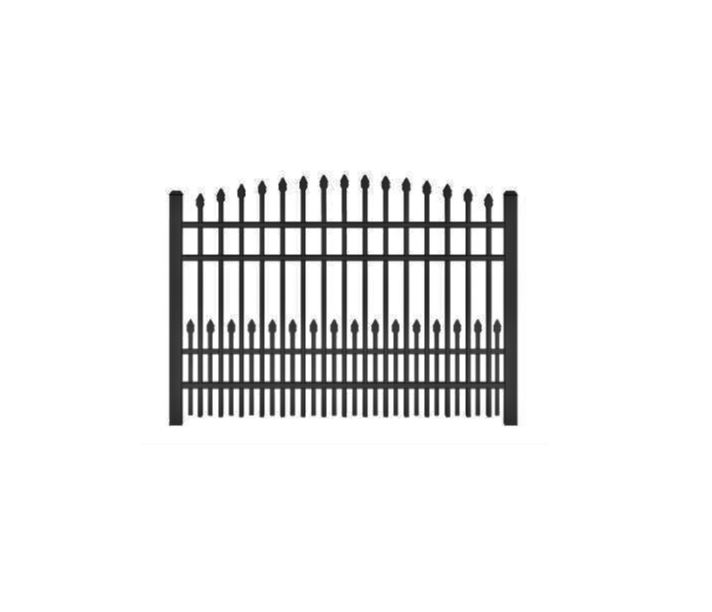

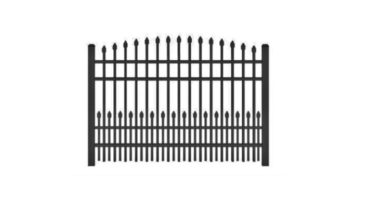

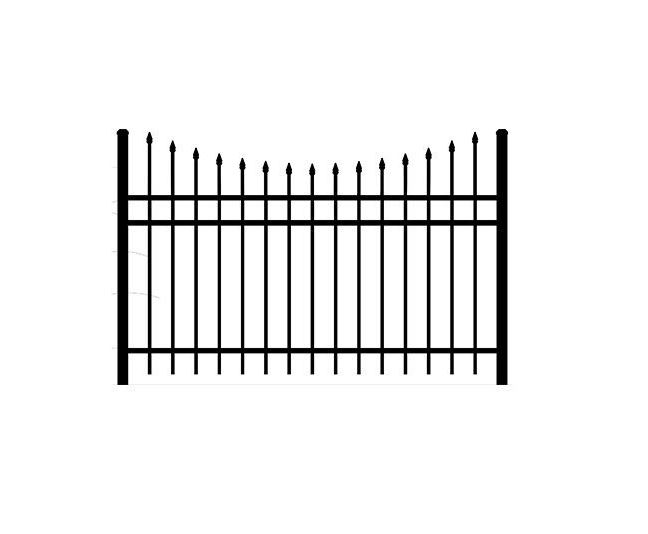

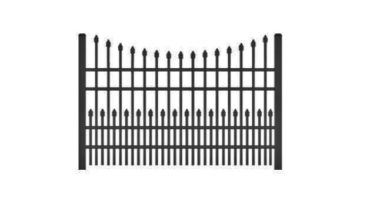

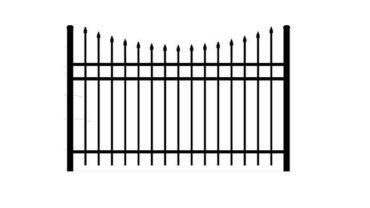

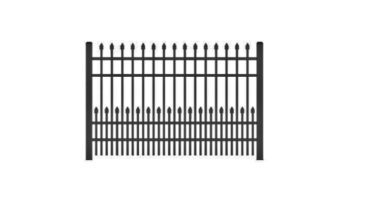

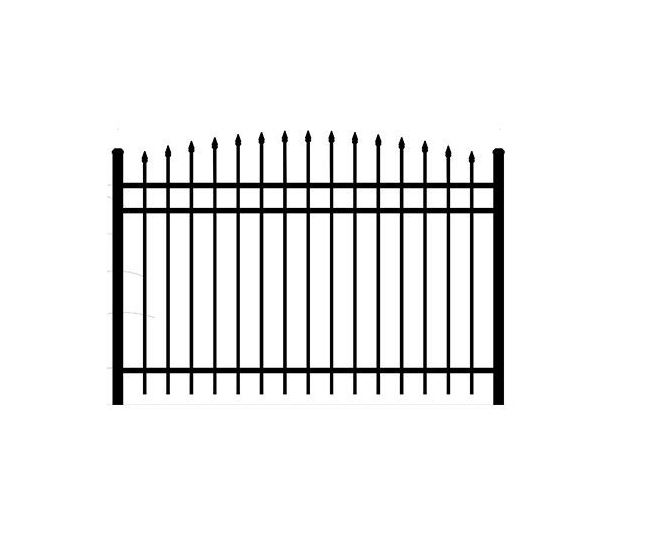

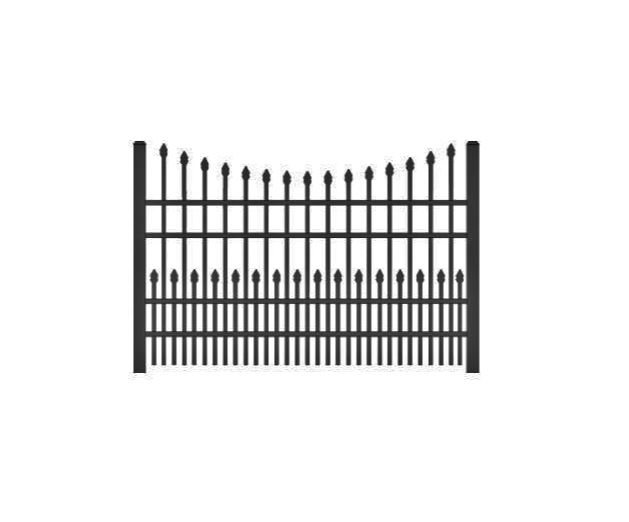

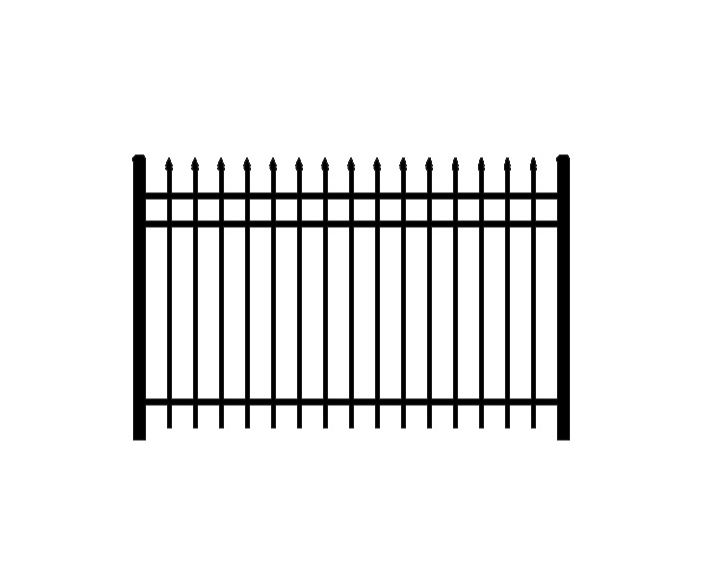

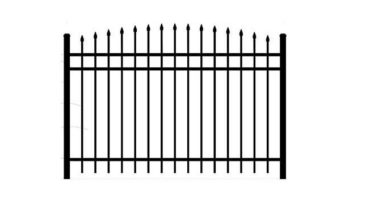

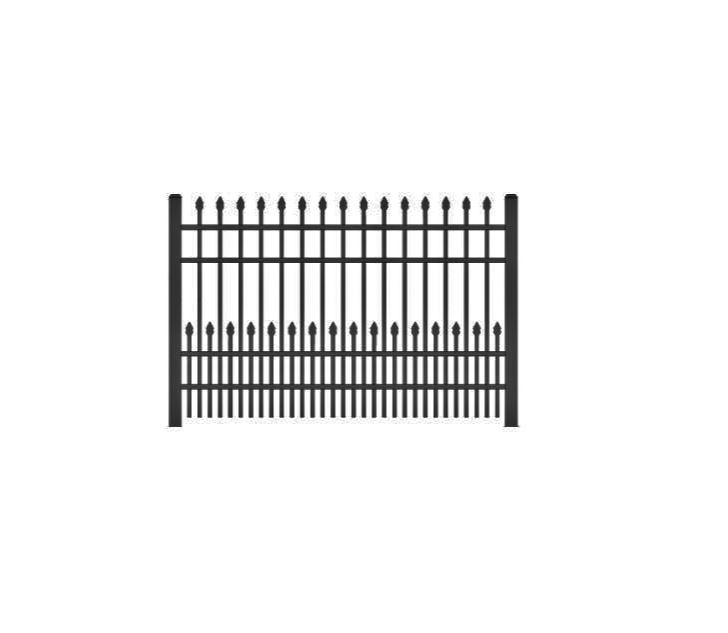

Model 2131
3 Rail with Spear Points

  • Heights: 48″, 54″, 60″, 72″
  • Standard, EXTRA PICKETS ON BOTTOM, Scallop Down, or Scallop Up
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Finial Option: Triad, Quad
  • Lifetime Warranty

*Click on image to scroll through the gallery

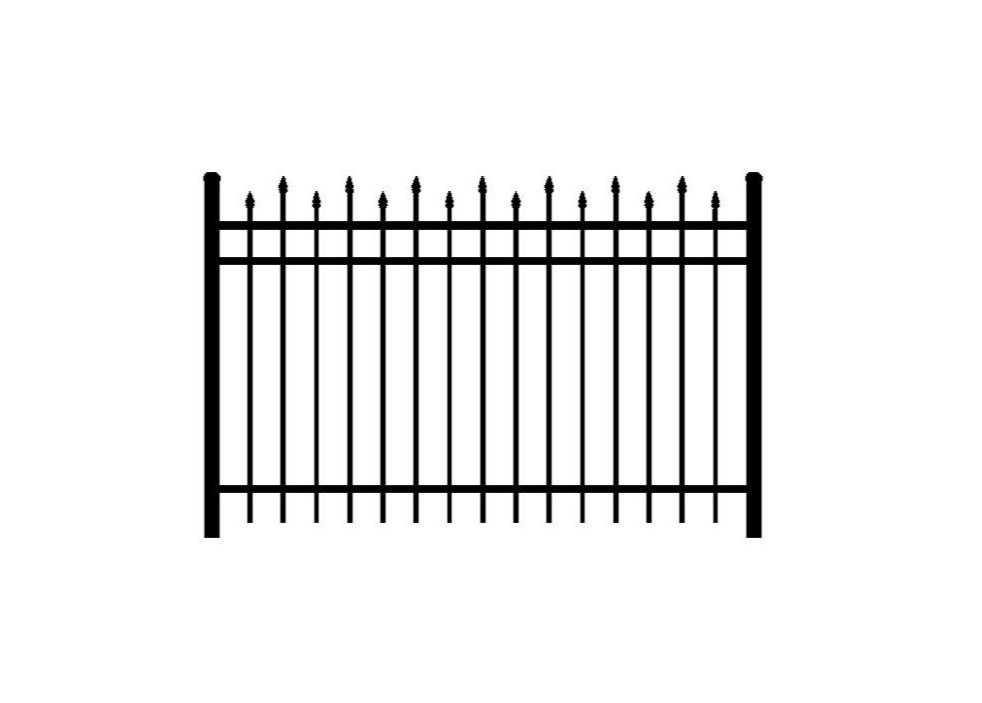

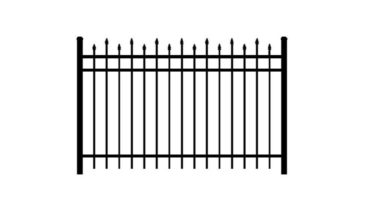

Model 2132
3 Rail with Alternating Spear Points

  • Heights: 48″, 54″, 60″, 72″
  • Standard or EXTRA PICKETS ON BOTTOM
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Finial Option: Triad, Quad
  • Lifetime Warranty

*Click on image to scroll through the gallery

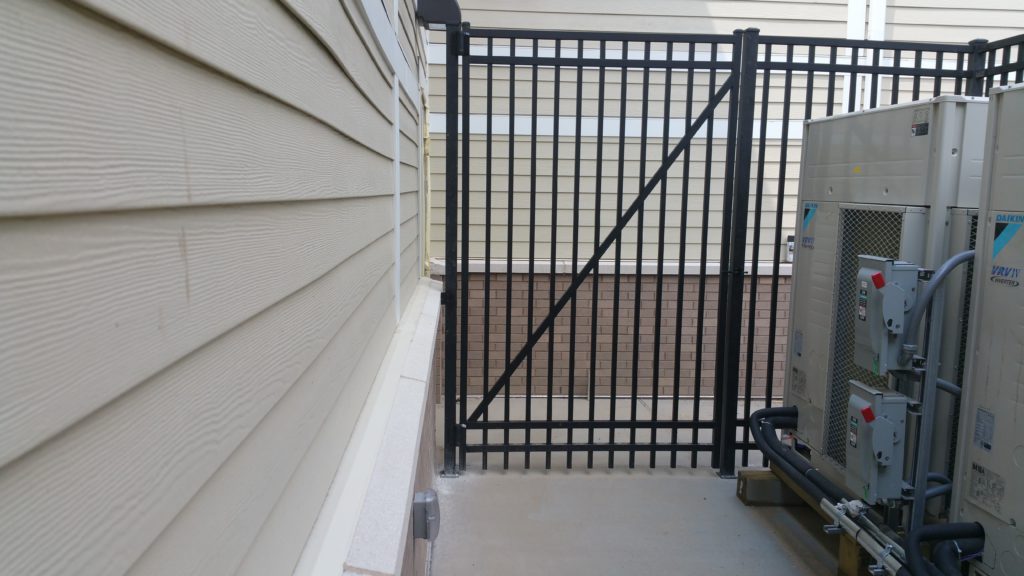

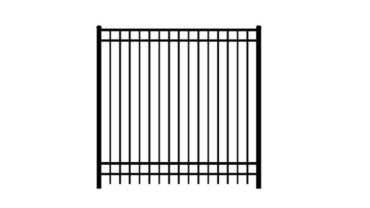

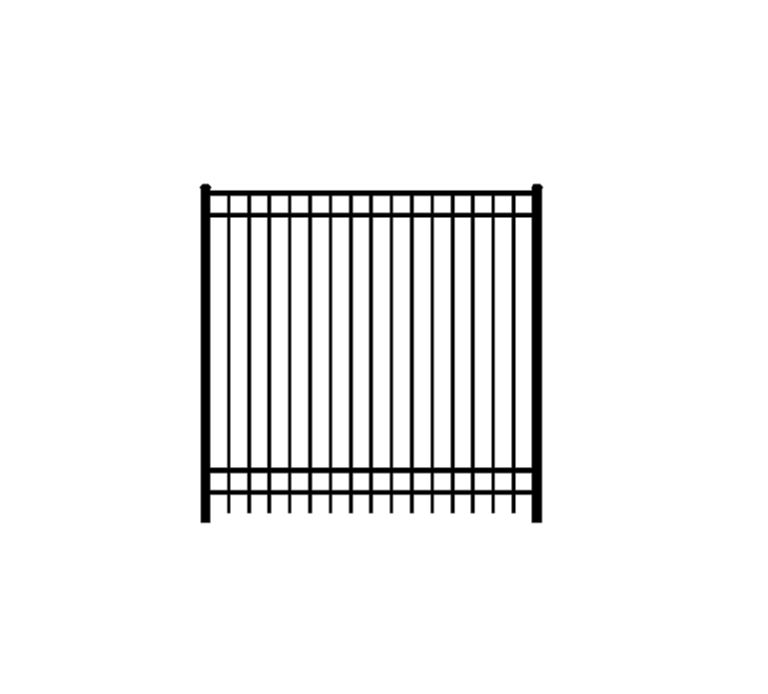

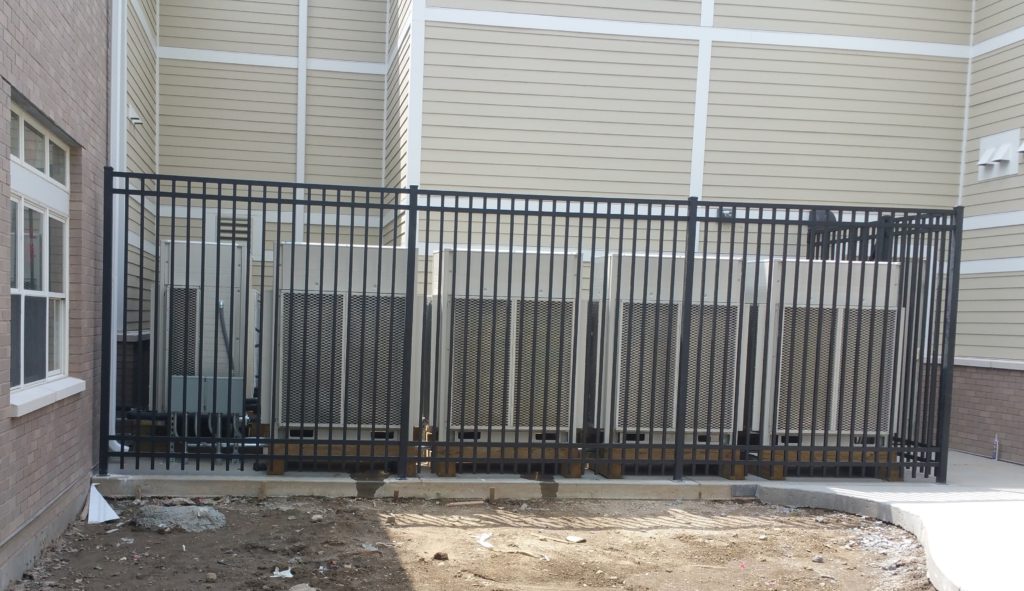

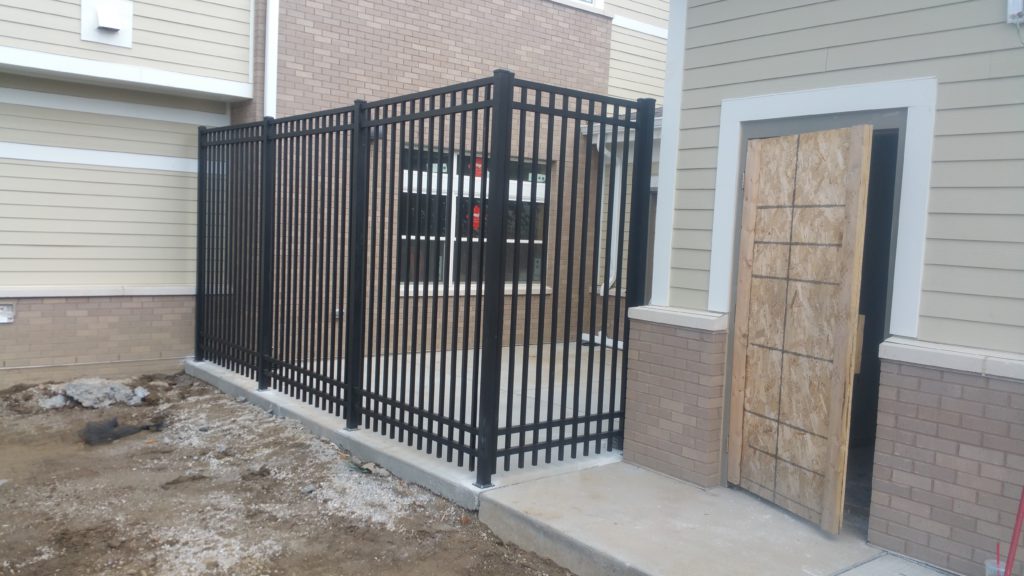

Model 2240
4 Rail – Flat Top

  • Heights: 84″ and 96″
  • Standard or EXTRA PICKETS ON BOTTOM
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Lifetime Warranty

*Click on image to scroll through the gallery

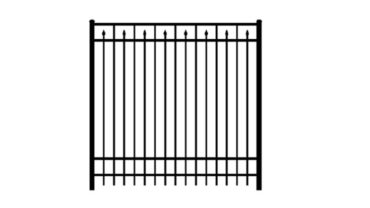

Model 2243
4 Rail Flat Top
with Alternating Spear Points

  • Heights: 84″ and 96″
  • Standard or EXTRA PICKETS ON BOTTOM
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Finial Option: Triad, Quad
  • Lifetime Warranty

*Click on image to scroll through the gallery

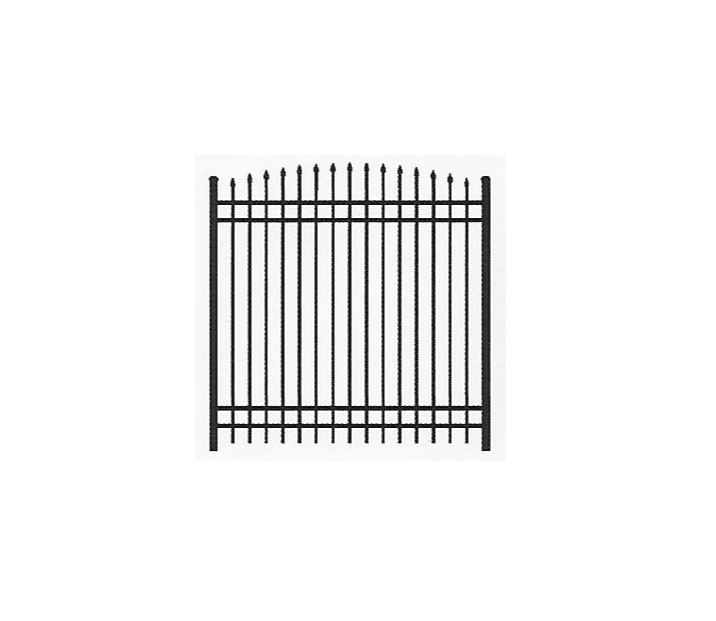

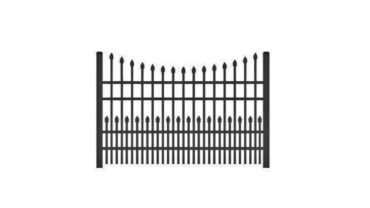

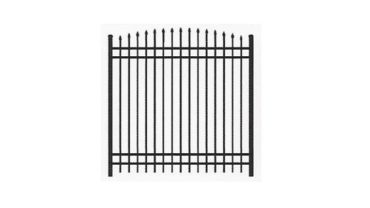

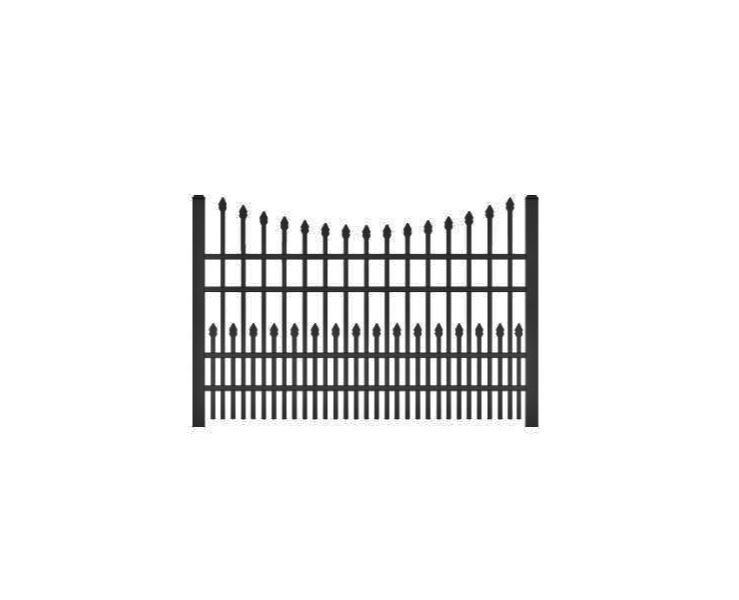

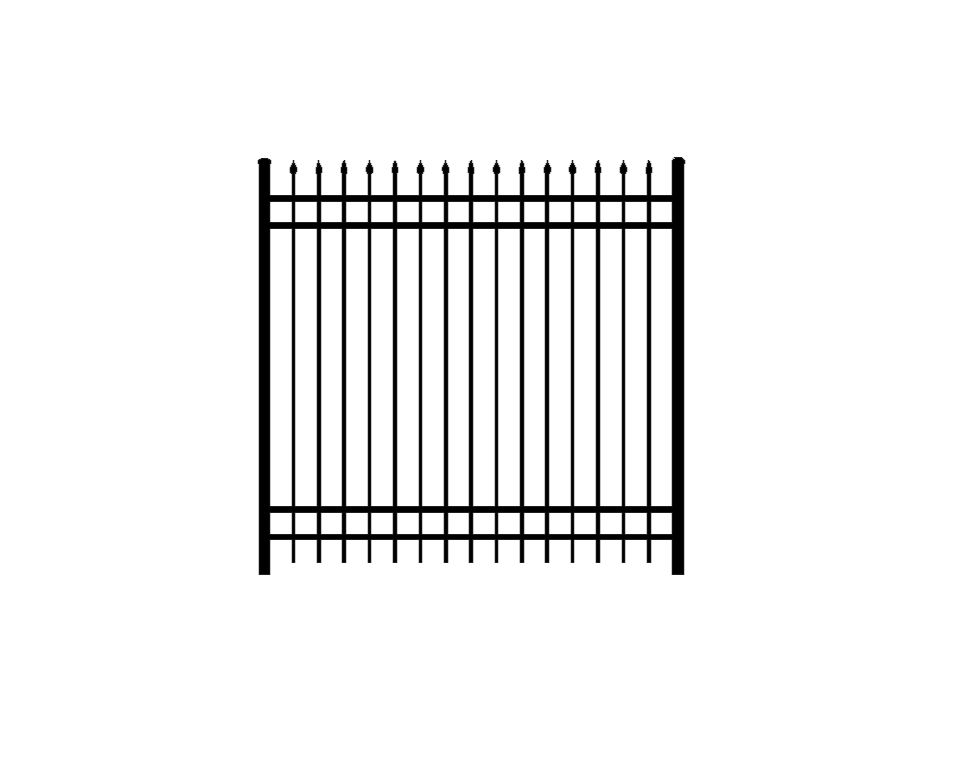

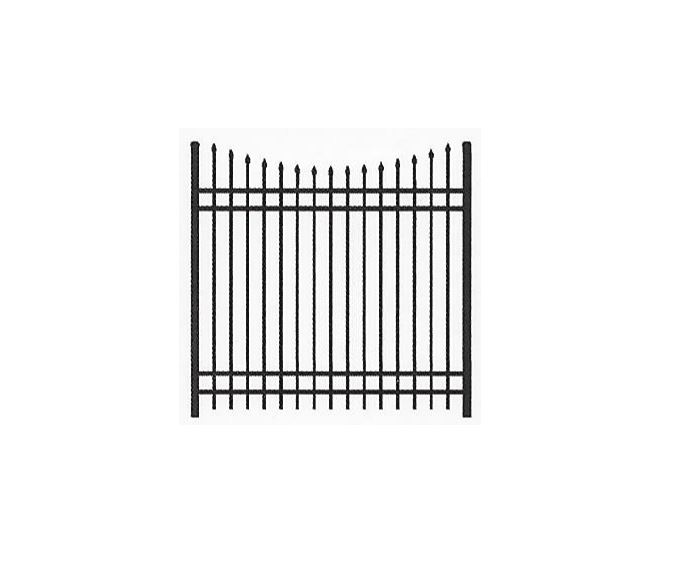

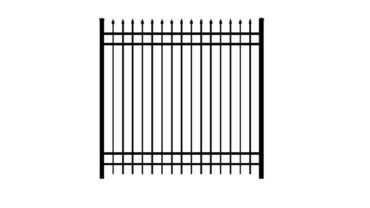

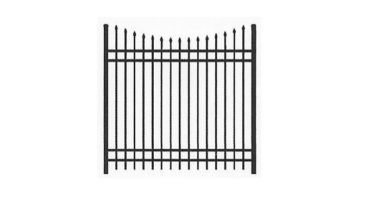

Model 2141
4 Rail with Spear Points

  • Heights: 84″ and 96″
  • Standard, EXTRA PICKETS ON BOTTOM, Scallop Up, or Scallop Down
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Finial Option: Triad, Quad
  • Lifetime Warranty

*Click on image to scroll through the gallery

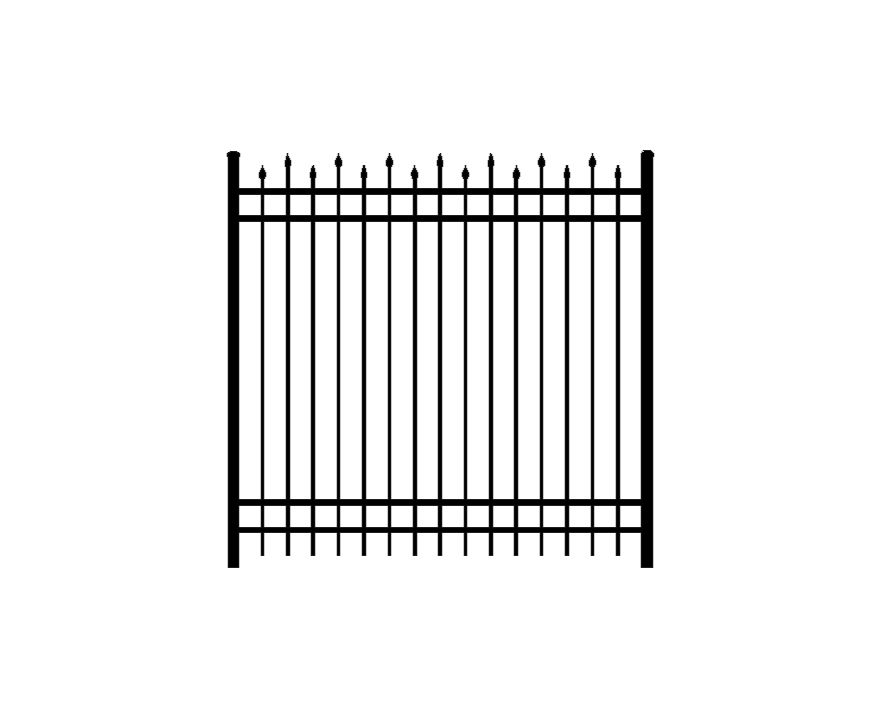

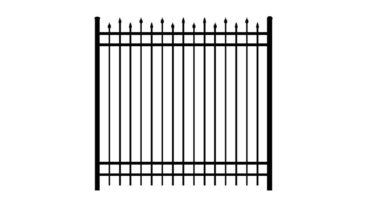

Model 2142
4 Rail with Alternating Spear Points

  • Heights: 84″ and 96″
  • Standard or EXTRA PICKETS ON BOTTOM
  • Posts: 2.5″ x 2.5″ x .090″ Wall with 96″ Centers
  • Gate Posts: 2.5″ x .090″ Wall Gate Post with Insert = .215″ Wall or 4″ x 4″ x .125″ Wall
  • Post Caps: 2.5″ or 4″
    Flat Cap-Standard, Ball Cap-Optional
  • Rails: 1.5″ Height x .100″ Wall by 1.5″ Width x .070″ Wall
  • Pickets: 1″ x 1″ x .065″ Wall
  • Picket Spacing: 3.75″
  • Finial Option: Triad, Quad
  • Lifetime Warranty
